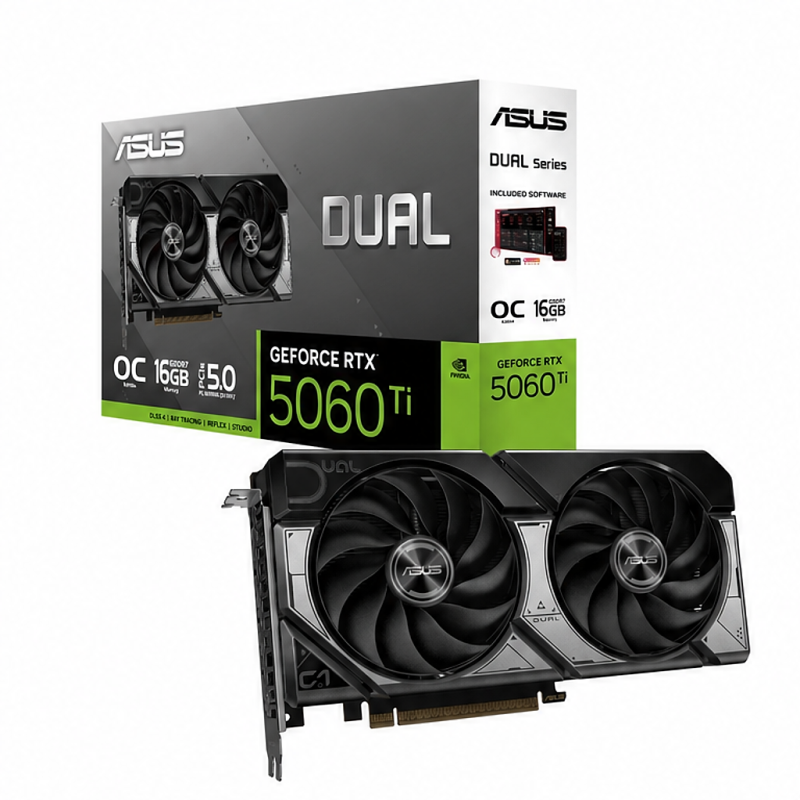

The Asus Dual GeForce RTX 5060 Ti OC Edition 16GB GDDR7 is a compact graphics card with a 2.5-slot design and two Axial-tech fans for straightforward installation in many PC builds. It uses a PCI Express 5.0 interface, includes 16GB of GDDR7 memory, and provides 1 HDMI 2.1b port plus 3 DisplayPort 2.1b outputs. OC mode reaches 2632 MHz, and ASUS recommends a 550W power supply with one 8-pin power connector. It suits buyers who want an Asus GPU for gaming or creative workloads in a space-conscious setup.
Frequently asked questions
What case space do I need?
The card uses a 2.5-slot design and measures 229 x 120 x 50 mm, so check internal clearance before installing.
What power supply is required?
ASUS recommends a minimum 550W PSU and one additional 8-pin power connector.
How many displays can it support?
It has 1 HDMI 2.1b port and 3 DisplayPort 2.1b ports, with support for up to 4 displays.
FT-ED5D327BFB523DFFA7B1
7 Items
Data sheet
Color
Black
Technology
GDDR7
Connectivity
PCI Express 5.0
Weight
0
Dimensions
229 x 120 x 50 mm
Capacity
16 GB GB
Specific References
Compact Asus graphics card with 16GB GDDR7, PCIe 5.0, HDMI 2.1b, three DisplayPort 2.1b outputs, and two Axial-tech fans.
